Description

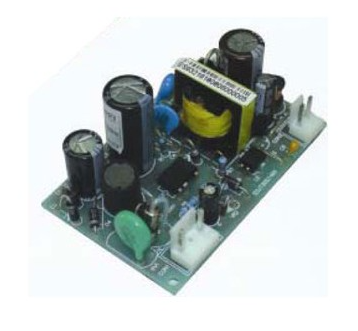

Open-Frame Power Supply 12 Watt Single Output
Size(L×W×H): 71mm x 44.5mm x 29mm
Product features:
– 150HW low power stay up
– Over current / over voltage protection adjustable
– Protections: Over temperature/short circuit / short voltage protection
– Universal AC input/full range
– Cold Start
– One year warranty
| Specifications: | |
| AC input voltage: | 90~264V AC |
| Input frequency: | 47~63HZ |
| Input current: | 0.25~0.4A at 110~220VAC |
| Inrush Current: | 50A @ 220VAC 30A @ 110VAC |
| Leakage Current: | 2mA |
| Hold-up Time: | 20mS typ |
| Safety Standards: | UL1950 CSA 22.2 No.234 EN60950/TUV |
| EMI Standards: | FCC Part 15 CLASS ‘B’ EN55022 class B |
| Operating Temperature: | 0~40°C |
| Storage Temperature: | -40~70°C |
| Operating humidity: | 5% to 90% RH, non-condensing |
| Storage humidity: | 5% to 90% RH, non-condensing |
| Ripple and noise: | 150mV |
| Line regulation: | ±1% |
| Load regulation: | ±2% |
| Efficiency: | ≥75% |
| MTBF: | 105 h at 25°C |
| Weight: | 0.05Kg/pcs |
