Description

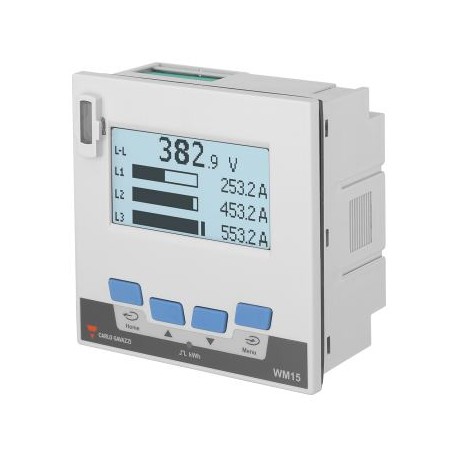

The WM15 Series is a power analyser for single-, two- and three-phase systems. Depending on the model, WM15 is equipped with a static output (pulse or alarm) or with a static output and a Modbus RTU communication port.
The self-powered version can be installed on systems up to 415 V L-L (400 V L-L for MID models), while the version with auxiliary power supply can be installed on systems up to 600 V L-L.
Â
General Features
| Material | Housing: PC/ABS (UL94 V1) Transparent cover: PC (UL94 V2) |
| Protection Degree | Front: IP51
Terminals: IP20 |
| Terminals | Screw fixed terminal block, min:0.05; max: 2.5 mm2 |
| Overvoltage Category | Cat.�III |
| Pollution Degree | 2 |
| Mounting | Panel 96 X 96 |
| Weight | 280g |
Â
Environemtal Specifications
| Operating Temperature | From -25 to +55�C/ from -13 to +131 �F |
| Storage Temperature | From -25 to +70�C/ from -13 to +158 �F |
| Electromechnical Environmental Condition | E2 |
| Mechanical�Environmental Condition | M2 |
