Description

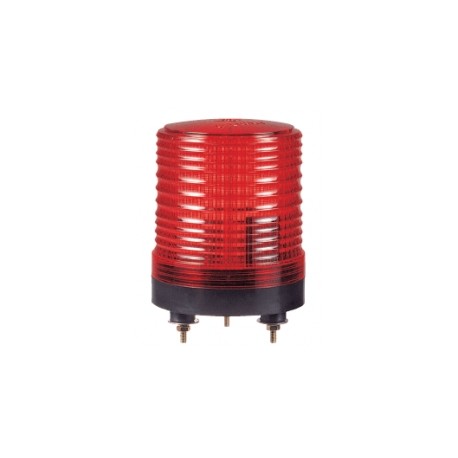

LED Strobe Light Specifications:
Key Features:
- External Diameter: Ø83mm
- Height: 133mm
- Voltage: DC12V, DC24V
- Suitable for agricultural machines and heavy equipment with strong vibration and external impact.
- High brightness LED with semi-permanent lifespan and excellent visibility, including daytime visibility.
- Material: Body-ABS, Lens-PC, Bracket-Steel
- Protection Class: IP65 (resistant to dust and low-pressure water jets).
Specifications:
| Model | Rated Voltage | Current | Weight | Flashes | Color Options |
|---|---|---|---|---|---|
| S80HLS | DC12V | 0.500A | 0.350Kg | 60~80/min. | R – Red |
| DC24V | 0.300A | A – Amber | |||
| G – Green | |||||
| B – Blue |
Wiring:
- Power Line: KCS3304 (0.85Sq×2c), 400mm
- DC exclusive use. Black line is Negative (-).
- (+) Terminal: CA104 connector
- (-) Terminal: CB104 connector
Available Specifications:
| Model | Voltage | Color |
|---|---|---|
| S80HLS | 12 (DC12V) | R – Red |
| 24 (DC24V) | A – Amber | |
| G – Green | ||
| B – Blue |
